Vertical Platform Lift & Wheelchair Lift
Garaventa Vertical Platform Lifts are designed to provide cost-effective access into or within private homes or public buildings. There are four models of Garaventa vertical platform lifts to suit any need or application, the Genesis Enclosure, Genesis Shaftway and Elvoron CPL.
Our Models

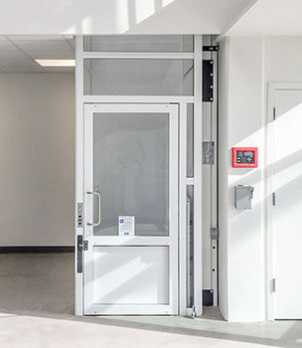

Genesis Enclosure
The Enclosure Model is a complete, self contained vertical platform lift consisting of a drive mast, passenger platform, doors/gates and factory manufactured walls that enclose the lift.
Genesis Shaftway
The Genesis Shaftway Model fits inside a vertical runway (also known as a hoistway or shaftway) that is built by others in accordance to Garaventa Lift specifications.
CPL
The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling.
Request a quote
Cost effective solutions for all your elevator needs. That’s what’s makes Alcor Elevator stand out from the competition.
We are a Canadian elevator company that provides services for our clients in southern Ontario.
- sales@alcorelevator.com
- (905) 538-0171
- #21-395 Anchor Rd. Hamilton, Ont. L8W 0C7
Send us a message
Product descriptions

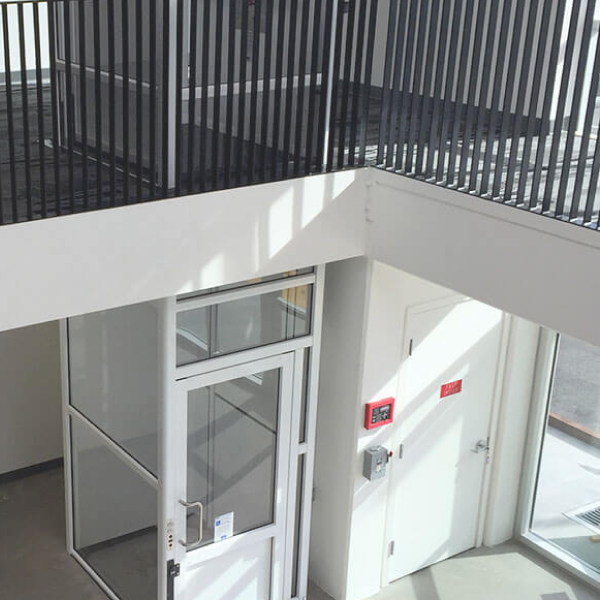

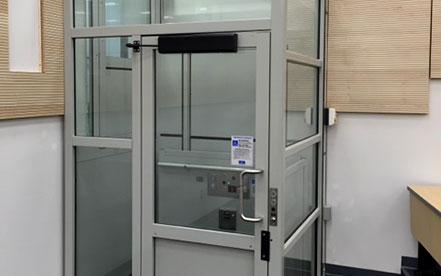

Genesis Enclosure Model
The Enclosure Model is a complete, self-contained vertical platform lift consisting of a drive mast, passenger platform, doors/gates and factory manufactured walls that enclose the lift. No need to be concerned with the construction of a hoistway (also known as a shaftway).
This style of lift can normally be installed without the need for extensive site modifications. The enclosure itself features an attractive extruded aluminum frame and panels made of steel, Plexiglas or safety glass. Custom materials, colors and graphics are also available.
- Complete, self-contained vertical lift.
- Rated load – 340 kg (750lbs).
- Choice of seven lifting heights ( Hydraulic Drive ).
- Choice of three lifting height ( Leadscrew Drive ).
- 90°, 180° and 360° degree entry/exit configurations.
- Two or three stops.

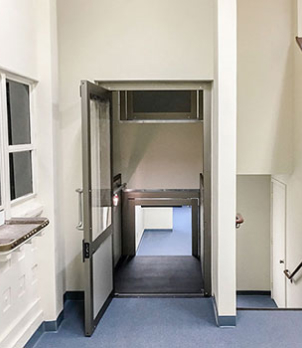

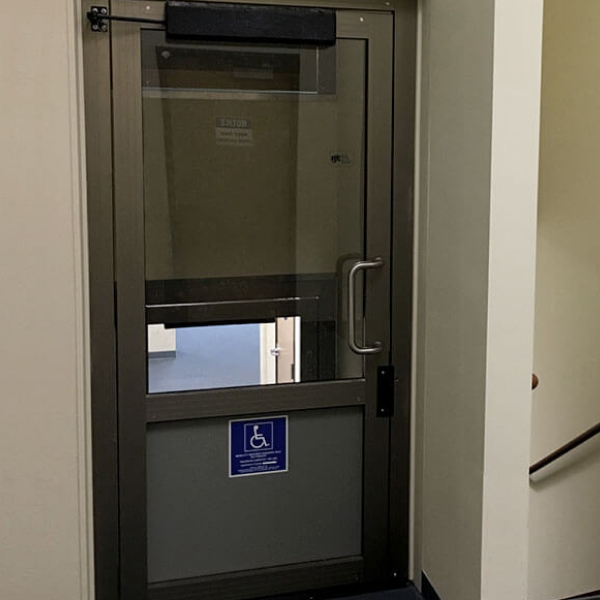

Genesis Shaftway Model (Hoistway)
The Genesis Shaftway Model fits inside a vertical runway (also known as a hoistway or shaftway) that is built by others in accordance to Garaventa Lift specifications. This vertical platform lift consists of a drive mast, passenger platform, doors and gates.
The hoistway at the uppermost landing can be protected by a gate and surrounding hoistway walls that are only 42″ tall. Another alternative is to put a full height door (80″ tall) on the lift entrance and extend the surrounding walls to the ceiling. In cases where children or teens may be frequenting the area, it is advisable to enclose the uppermost landing completely, even if this exceeds minimum code requirements.
- Lifts inside a vertical runway.
- Rated Load – 340kg (750lbs).
- Choice of seven lifting heights( Hydraulic Drive ).
- Choice of three lifting height ( Leadscrew Drive ).
- 90° entry/exit configurations.
- Two or three stops.

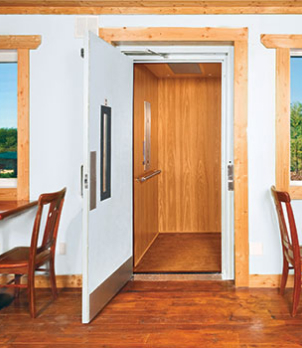

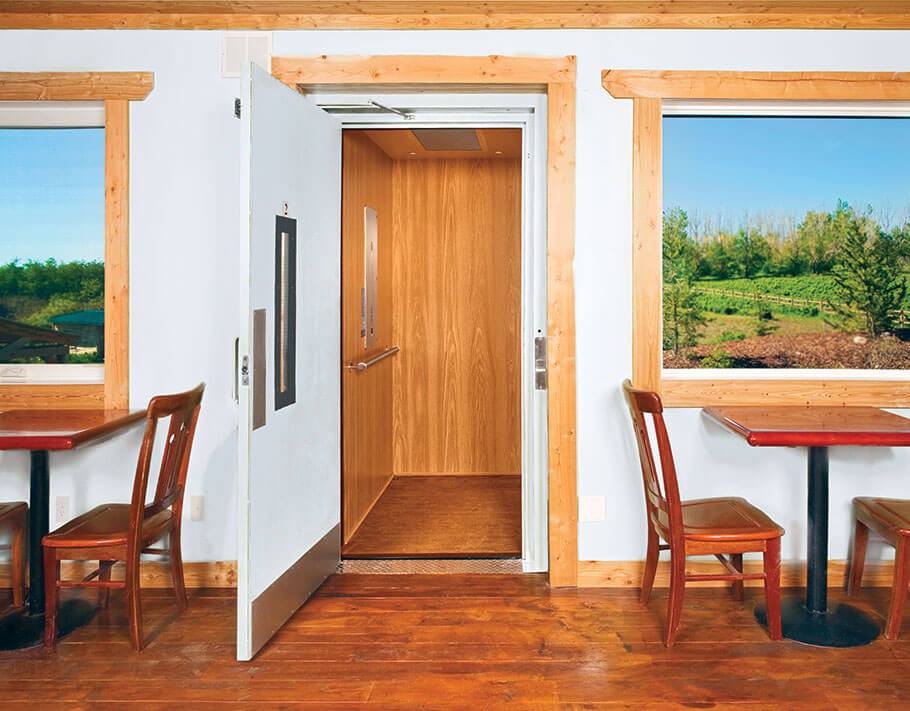

Elvoron CPL Model
The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling. It looks and feels like a small elevator but costs much less.
The Elvoron CPL is designed to provide access for people with disabilities in commercial buildings. Simple constant pressure operation and swing door access ensure reliability and ease of operation for passengers.
- Lifts inside a vertical runway.
- Standard capacity of 750lbs (340kgs). Up to 1,400lbs (635kgs) where permitted.
- Maximum floor to floor travel: Canada 23ft (7.0m).
- Hydraulic Drive System.
- 90° entry/exit configurations.
- Up to six stops.
Industries We Service:
Since 2009 we have been servicing apartment buildings and shopping centres to steel mills. Please see below for more information on how we can service your industry.
